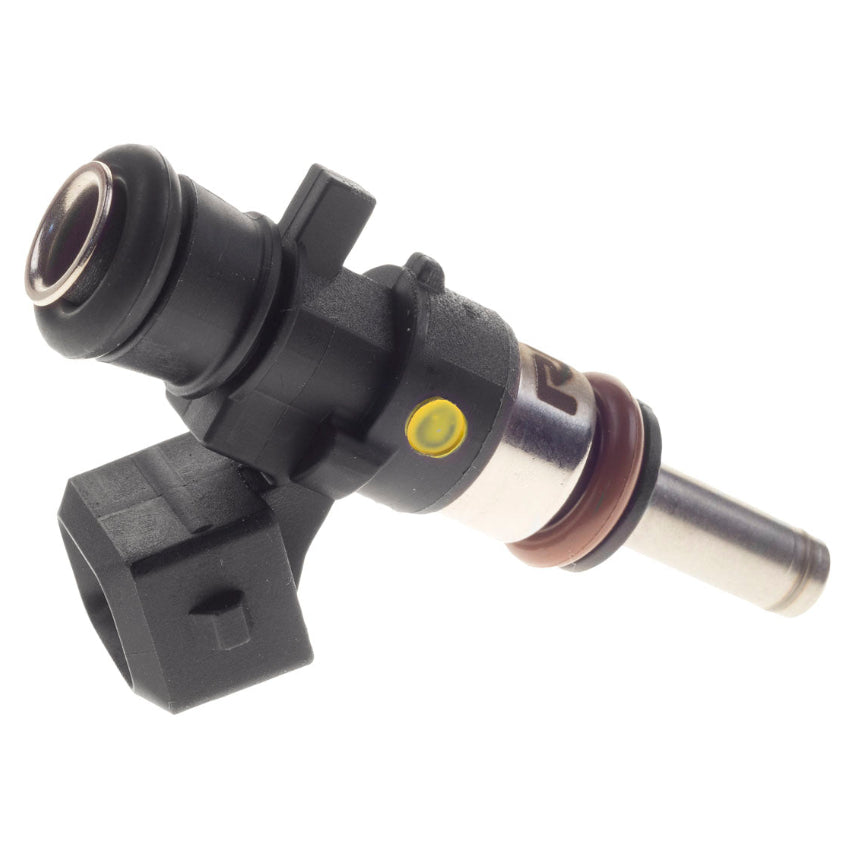

Raceworks 1200cc Injector Short Length With Extended Nose Suit FG NA NA+T
- Modified/High Flowed Bosch Injector
- Size: 1200cc (114 Lb/hr) @ 3bar and 1380cc (131Lb/hr) @ 4bar.
- Impedance: High (12Ohms)
- Plug: Bosch.
- O-Ring: 14mm.
- Spray Pattern: Narrow Cone
- Spray Direction: Straight
- Flow variance is +/- 1.5% (3% Total)
-
E85 Safe
Direct fit applications
- Ford Falcon FG/FG-X NA NA+T with the factory plastic manifold when using adapters and retaining clips
Injector extensions and retaining clips are required to maintain the correct injector length. Please refer to the second image showing the injector fitted.
The extension fits to the top of the injector and is secured with a retaining clip that locks the extension to the injector. The factory retaining clip then secures the extension to the fuel rail.
Please select from the drop-down menu if these components are required.
Note - The injector retaining clips and adapters come in packs of 6; unfortunately, singles are not available.
Injectors may physically fit your application, but will require tuning after installation. They can also be used in a wide range of setups when paired with the appropriate extensions, O-rings, or plug adaptors.
If you require assistance with selecting injectors, feel free to get in touch.
INJ-502 Calibration Data PDF
INJ-502 BA-FGX Injector Calibration
