Process West Race Air Box Kit (suits Ford Falcon FG w/ 4" Turbo Inlet)
The 4" race air box system has been designed for extreme power levels. Utilising the area normally occupied by the battery we have been able to design the ultimate high horse power intake.

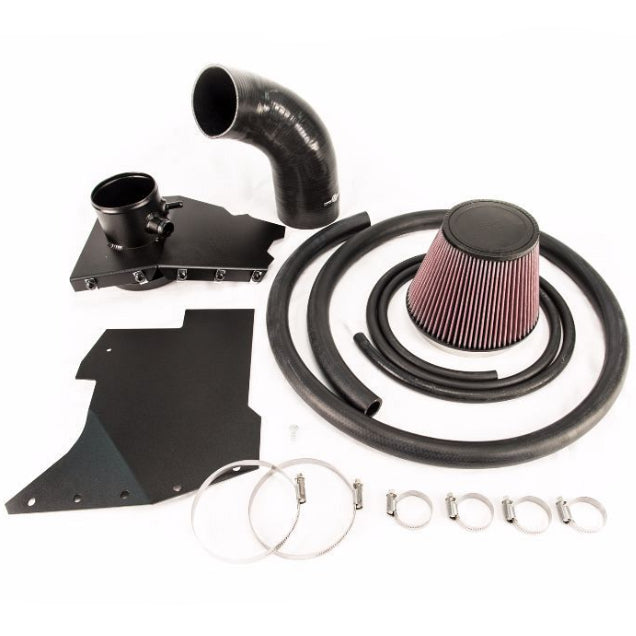

The air box uses a massive 6" internal diameter K&N filter which mounts onto a 6" to 4" bell mouth which connects to a internally wire re-enforced moulded silicon hose down to the turbo. This combination gives maximum flow for power levels of 500rwkW+.
The air box can also be used for high mount turbo configurations. The 4" OD air box outlet is at the approximate height of most high mount turbo compressor inlets so a simple section of pipe is all that is needed to use the air box for high mounts.
This is for those that have upgraded their turbo to a 4" inlet (0.7A/R cover), as supplied is the 4" to 4" silicon hose.
- K&N Filter Supplied
- 6" to 4" bell mouth
- Utilises the stock location for the battery
- Suites upgraded turbo housing
